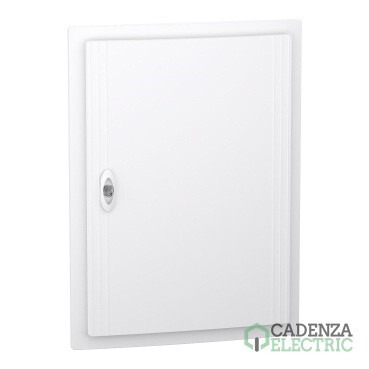

Envolvente modular PrismaSeT XS — LVSXN318 ref. LVSXN318 Schneider Electric

LVSXN318 | 125 A | IP40 | XS | Enclosure | Schneider Electric | Precio en oferta
Ver más

Desde IVA incluido

IVA no incluido

Intensidad

Cantidad

()

Código de referencia: SCHLVSXN318
Código de producto:
Código de proveedor:
Más en PrismaSeT XS (Empotrar y Superficie)
Marca: Schneider Electric
Gama: PrismaSeT
Tipo de producto o componente: Armario
Montaje y fijación: Empotrado
Precio de coste:
Unidades por pack:

Descripción
Propiedades

Especificaciones de Envolvente modular PrismaSeT XS — LVSXN318 – referencia LVSXN318 de Schneider Electric.

Main

Range	PrismaSeT
Product name	XS
product or component type	Enclosure
Enclosure type	Distribution enclosure
Enclosure	mounting Flush

Complementary

Width Total	486 mm
Embedded	456 mm
Height Total	660 mm
Embedded	630 mm
Depth Total	137.5 mm
Embedded	86.5 mm

Internal depth 80 mm

number of 18 mm modules per row	18
number of horizontal rows	3
Total	number of 18 mm modules 54
9 mm pitches	108
electrical insulation class	Class II

Provided equipment 3 identification label

3 label protector

2 terminal block

1 blanking plate strip

1 door

3 DIN rail

1 back plate

type of front plate	Modular
Door	type Plain

Type of rail Symmetrical DIN

Mounting plate description Without mounting plate

Power dissipation in W 68 W

[In] rated current	125 A
[Ui] rated insulation voltage	400 V

Cable entry Cable or tube

Cut-out plates

Removable plates

Number of terminal blocks 1 neutral with 24 outgoers

1 earth with 32 outgoers

Distribution block outgoers 4 x (4 x 16 mm² + 4 x 10 mm²) for earth

3 x (4 x 16 mm² + 4 x 10 mm²) for neutral

Aug 5, 2026

Connections - terminals	Screw connection (earth) , 16 x 16 mm²

Screw connection (earth) , 16 x 10 mm²

Screw connection (neutral) , 12 x 16 mm²

Screw connection (neutral) , 12 x 10 mm²

Locking options description	Keylock option
Enclosure material Back part	technoplastic
Enclosure	technoplastic
Front plate	technoplastic
Door	technoplastic
Product Weight	5.680 kg
Colour Enclosure	white (RAL 9003)
Front plate	white (RAL 9003)
Door	white (RAL 9003)

Market segment Residential

Small buildings

Environment

Fire resistance Back plate	650 °C conforming to IEC 60695-2-11
Enclosure	650 °C conforming to IEC 60695-2-11
Front plate	650 °C conforming to IEC 60695-2-11
Door	650 °C conforming to IEC 60695-2-11
ip degree of protection	IP40 with closed door
ik degree of protection	IK09 with closed door

Overvoltage category II

Ambient Air Temperature for Operation	-25…60 °C
Standards	IEC 60670-1

IEC 60670-24

Quality labels IMQ

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Height 14.000 cm

Package 1 Width 50.000 cm

Package 1 Length 67.000 cm

Package 1 Weight 5.826 kg

Unit Type of Package 2 P12

Number of Units in Package 2 13

Package 2 Height 102.000 cm

Package 2 Width 80.000 cm

Package 2 Length 120.000 cm

Package 2 Weight 84.000 kg

Offer Sustainability

Recyclability potential, in % 59

Total	lifecycle Carbon footprint 39 kg CO2 eq.

Carbon footprint of the manufacturing phase [A1 to A3] 28.412628046306335

Carbon footprint of the manufacturing phase [A1 to A3] 28 kg CO2 eq.

Carbon footprint of the distribution phase [A4] 1.1326430952472426

Carbon footprint of the distribution phase [A4] 1 kg CO2 eq.

Carbon footprint of the installation phase [A5] 0.07180340876375603

Carbon footprint of the installation phase [A5] 0.1 kg CO2 eq.

Carbon footprint of the use phase [B2, B3, B4, B6] 0

Carbon footprint of the use phase [B2, B3, B4, B6] 0 kg CO2 eq.

Mercury free Yes

Sustainable packaging	No

Carbon footprint of the end-of-life phase [C1 to C4] 9.62339037769203

Carbon footprint of the end-of-life phase [C1 to C4] 10 kg CO2 eq.

Environmental Disclosure

Product Environmental Profile

Total	lifecycle Carbon footprint 39

Average percentage of recycled plastic content 84 %

Packaging made with recycled cardboard Yes

Packaging without single use plastic No

SCIP Number 5305d5d6-3783-4b3d-abd0-61fa4a6023d7

REACh Regulation Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive Compliant By Exemption

California proposition 65 WARNING	This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Halogen-free status Halogen free plastic parts product

PVC free Yes

End of life manual availability No need of specific recycling operations

Take-back No

Contractual warranty

Warranty (in months) 18

Product Life Status	Commercialised
