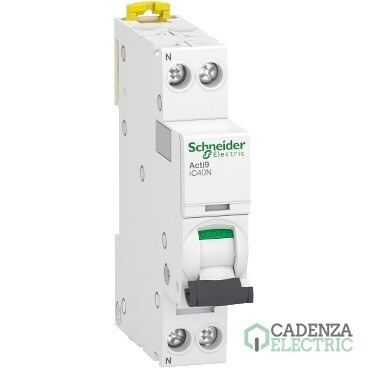

Interruptor magnetotérmico Acti9 iC40N — A9P54604 ref. A9P54604 Schneider Electric

A9P54604 | 1P+N | 4 A | 10 kA | IP20 | Acti9 iC40 | Schneider Electric | Precio en oferta
Ver más

Desde IVA incluido

IVA no incluido

Intensidad

Cantidad

()

Código de referencia: SCHA9P54604
Código de producto:
Código de proveedor:
Más en 1 P+N
Más en Magnetotermicos estrechos iC40 (Dpn)
Marca: Schneider Electric
Poder de Corte: 10 kA
Gama: Acti9
Tipo de producto o componente: Interruptor automático en miniatura
Corriente nominal: 4 A
Curva de disparo: C
Numero de polos: 1P+N
Aplicación del aparato: Distribución
Número de polos protegidos: 1P
Tecnología de unidad de disparo: Térmico-magnético
Precio de coste:
Unidades por pack:

Descripción
Propiedades

Especificaciones de Interruptor magnetotérmico Acti9 iC40N — A9P54604 – referencia A9P54604 de Schneider Electric.

Main

Range	Acti9
Product name	Acti9 iC40
product or component type	Miniature circuit-breaker
Device Short Name	iC40N
Device application	Distribution
Poles description	1P + N
Number of protected poles	1
Neutral position	Left
[In] rated current	4 A
Network type	AC
trip unit technology	Thermal-magnetic
Curve code	C
Breaking Capacity	10 kA Icu at 230 V AC 50/60 Hz conforming to EN/IEC 60947-2 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
Suitability for isolation	Yes conforming to EN/IEC 60947-2

Quality labels IMQ

Complementary

Network frequency	50/60 Hz
[Ue] rated operational voltage	230 V AC 50/60 Hz
Magnetic tripping limit	5...10 x In conforming to EN/IEC 60898-1 8 x In +/- 20 % conforming to EN/IEC 60947-2
[ics] rated service breaking capacity	6000 A 100 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1

7.5 kA 75 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60947-2

Limitation class	3 conforming to EN/IEC 60898-1
[Ui] rated insulation voltage	400 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage	4 kV conforming to EN/IEC 60947-2
Contact position indicator	Yes
Control Type	Toggle
Local signalling	ON/OFF indication

Trip indicator

mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	2
Height	85 mm
Width	18 mm
Depth	74 mm

Aug 5, 2026

Product Weight	120 g
Colour	White
Mechanical Durability	20000 Cycles
Electrical Durability	20000 Cycles
Locking options description	Padlocking device
Connections - terminals	Tunnel type terminals top or bottom 1…10 mm² flexible

Tunnel type terminals top or bottom 1…16 mm² rigid

Wire stripping length	14 mm for top or bottom connection
tightening torque	2 N·m top or bottom

Earth-leakage protection Separate block

Environment

Standards	EN/IEC 60898-1

EN/IEC 60947-2

Product Certifications	CE
ip degree of protection	IP20 conforming to IEC 60529

IP40 (modular enclosure) conforming to IEC 60529

Pollution degree	3 conforming to EN/IEC 60947-2

Relative humidity 95 % at 55 °C

Operating altitude 2000 m

Ambient Air Temperature for Operation	-25…70 °C
Ambient air temperature for storage	-40…85 °C

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Height 1.700 cm

Package 1 Width 7.200 cm

Package 1 Length 9.300 cm

Package 1 Weight 118.000 g

Unit Type of Package 2 BB1

Number of Units in Package 2 12

Package 2 Height 8.700 cm

Package 2 Width 10.000 cm

Package 2 Length 22.000 cm

Package 2 Weight 1.464 kg

Unit Type of Package 3 S03

Number of Units in Package 3 132

Package 3 Height 30.000 cm

Package 3 Width 30.000 cm

Package 3 Length 40.000 cm

Package 3 Weight 16.550 kg

Offer Sustainability

Recyclability potential, in % 53

Total	lifecycle Carbon footprint 4 kg CO2 eq.

Carbon footprint of the manufacturing phase [A1 to A3] 0.879328228

Carbon footprint of the manufacturing phase [A1 to A3] 0.9 kg CO2 eq.

Carbon footprint of the distribution phase [A4] 0.016463246

Carbon footprint of the distribution phase [A4] 0 kg CO2 eq.

Carbon footprint of the installation phase [A5] 0.005999628

Carbon footprint of the installation phase [A5] 0 kg CO2 eq.

Carbon footprint of the use phase [B2, B3, B4, B6] 2.546

Carbon footprint of the use phase [B2, B3, B4, B6] 3 kg CO2 eq.

Mercury free Yes

Sustainable packaging	Yes

Carbon footprint of the end-of-life phase [C1 to C4] 0.33115841

Carbon footprint of the end-of-life phase [C1 to C4] 0.3 kg CO2 eq.

Environmental Disclosure

Product Environmental Profile

Total	lifecycle Carbon footprint 4

Packaging made with recycled cardboard Yes

Packaging without single use plastic Yes

SCIP Number C839c050-8547-41ce-b0db-e9813554fc09

REACh Regulation Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive Compliant By Exemption

California proposition 65 WARNING	This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

POP Directive No POPs

Halogen-free status Product contains halogen above thresholds

PVC free Yes

Silicone-free No

End of life manual availability No need of specific recycling operations

Take-back No

WEEE Label The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty

Warranty (in months) 18

Product Life Status	Commercialised

Vista 360º de Interruptor magnetotérmico Acti9 iC40N — A9P54604 ref. A9P54604 Schneider Electric

Arrastra la imagen para observar el producto desde todos los ángulos.

* Esta visualización pertenece a la referencia A9P54610 de Schneider Electric, que tiene una forma, tamaño y medidas igual que la referencia A9P54604 de Schneider Electric.

Disponibilidad y ofertas en Cadenza Electric

En Cadenza Electric tenemos más de 2.000 referencias de Schneider Electric en almacén logístico disponibles para envío inmediato, y más de 10.000 referencias de Schneider Electric en almacén central que podemos servir entre 1 y 4 días. Puedes comprar todas estas referencias de Schneider Electric al mejor precio de internet en Cadenza Electric.

Encuentra la disponibilidad de este producto, Interruptor magnetotérmico Acti9 iC40N — A9P54604 ref. A9P54604 Schneider Electric, en Cadenza Electric justo encima del botón naranja Comprar.

Para solicitar una oferta de gran volumen, o consultar si existe la posibilidad de acortar el plazo de entrega, rogamos contacto preferente vía email a info@cadenzaelectric.com o a través del siguiente enlace: contacto.

Poder de Corte	10 kA
Gama	Acti9
Tipo de producto o componente	Interruptor automático en miniatura
Corriente nominal	4 A
Curva de disparo	C
Numero de polos	1P+N
Aplicación del aparato	Distribución
Número de polos protegidos	1P
Tecnología de unidad de disparo	Térmico-magnético
