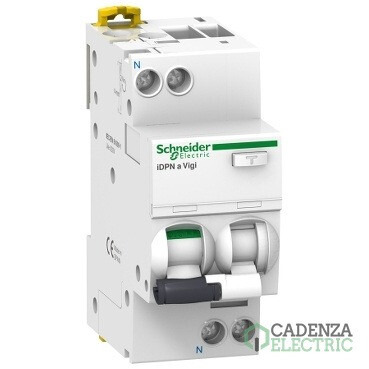

Magnetotérmico y diferencial combinado Acti9 iDPN Vigi 1P+N 16 A curva C 30 mA tipo AC ref. A9D34616 Schneider Electric

A9D34616 | 1P+N | 16 A | Curva C | 30 mA | Tipo AC | Acti9 iDPN Vigi | Schneider Electric | Precio en oferta
Ver más

Desde IVA incluido

IVA no incluido

Intensidad

Cantidad

()

Código de referencia: nw20170039
Código de producto:
Código de proveedor:
Más en 1 P+N
Más en Interruptores combinados magnetotérmico + diferencial
Marca: Schneider Electric
Sensibilidad de disparo: 30 mA
Gama: Acti9
Tipo de producto o componente: Magnetotérmico diferencial (RCBO)
Corriente nominal: 16 A
Curva de disparo: C
Numero de polos: 1P+N
Aplicación del aparato: Distribución
Número de polos protegidos: 1P
Tecnología de unidad de disparo: Térmico-magnético
Precio de coste:
Unidades por pack:

Descripción
Propiedades

Especificaciones de Magnetotérmico y diferencial combinado Acti9 iDPN Vigi 1P+N 16 A curva C 30 mA tipo AC – referencia A9D34616 de Schneider Electric.

Main

Range	Acti9
Product name	Acti9 iDPN Vigi
product or component type	Residual current breaker with overcurrent protection (RCBO)
Device Short Name	iDPNa Vigi
Device application	Distribution
Poles description	1P + N
Number of protected poles	1
Neutral position	Left
[In] rated current	16 A
Network type	AC
Network frequency	50 Hz
trip unit technology	Thermal-magnetic
Curve code	C
Earth-leakage sensitivity	30 mA
Suitability for isolation	Yes conforming to EN/IEC 60947-2

Complementary

Device location in system Outgoer

[Ue] rated operational voltage	230...240 V AC 50 Hz
Magnetic tripping limit	5...10 x In

Residual current tripping technology Voltage independent

earth-leakage protection time delay	Instantaneous
earth-leakage protection class	Type AC
Breaking Capacity	4500 A Icn at 230...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
[ics] rated service breaking capacity	4500 A 100 % x Icn at 230...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
rated breaking and making capacity	Idm 4500 A at 230...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
Limitation class	3 conforming to EN/IEC 61009-2-1
[Ui] rated insulation voltage	400 V AC 50 Hz
[Uimp] rated impulse withstand voltage	4 kV
Contact position indicator	Yes
Control Type	Toggle
Local signalling	ON, OFF, fault trip
mounting mode	Clip-on
Mounting support	DIN rail
Comb busbar and distribution block compatibility Top or bottom	YES

Connection pitch 9 mm between phase and neutral

Aug 5, 2026

9 mm pitches	4
Height	85 mm
Width	36 mm
Depth	73 mm
Product Weight	125 g
Colour	White
Mechanical Durability	20000 Cycles
Electrical Durability	20000 Cycles
Locking options description	Padlocking device
Connections - terminals	Single terminal top or bottom 1…16 mm² rigid

Single terminal top or bottom 1…10 mm² flexible

Single terminal top or bottom 1…10 mm² flexible with ferrule

Wire stripping length	15 mm for top or bottom connection
tightening torque	2 N·m top or bottom

Earth-leakage protection Integrated

Environment

Standards	EN/IEC 61009-2-1
Product Certifications	VDE
ip degree of protection	IP20 conforming to IEC 60529

IP40 (modular enclosure) conforming to IEC 60529

Pollution degree	3

Overvoltage category III conforming to IEC 60364

Electromagnetic compatibility	8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1

Tropicalisation 2 conforming to IEC 60068-1

Relative humidity 95 % at 55 °C

Ambient Air Temperature for Operation	-5…60 °C
Ambient air temperature for storage	-40…85 °C

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Height 4.000 cm

Package 1 Width 8.500 cm

Package 1 Length 10.000 cm

Package 1 Weight 206.800 g

Unit Type of Package 2 S03

Number of Units in Package 2 54

Package 2 Height 30.000 cm

Package 2 Width 30.000 cm

Package 2 Length 40.000 cm

Package 2 Weight 11.557 kg

Unit Type of Package 3 P12

Number of Units in Package 3 432

Package 3 Height 45.000 cm

Package 3 Width 80.000 cm

Package 3 Length 120.000 cm

Package 3 Weight 104.456 kg

Offer Sustainability

Recyclability potential, in % 50

Total	lifecycle Carbon footprint 3 kg CO2 eq.

Carbon footprint of the manufacturing phase [A1 to A3] 0.9874614576889849

Carbon footprint of the manufacturing phase [A1 to A3] 1 kg CO2 eq.

Carbon footprint of the distribution phase [A4] 0.040125674427049667

Carbon footprint of the distribution phase [A4] 0 kg CO2 eq.

Carbon footprint of the installation phase [A5] 0.0421662565219554

Carbon footprint of the installation phase [A5] 0 kg CO2 eq.

Carbon footprint of the use phase [B2, B3, B4, B6] 1.297130804066965

Carbon footprint of the use phase [B2, B3, B4, B6] 1 kg CO2 eq.

Mercury free Yes

Sustainable packaging	No

Carbon footprint of the end-of-life phase [C1 to C4] 0.2530984478017136

Carbon footprint of the end-of-life phase [C1 to C4] 0.3 kg CO2 eq.

Environmental Disclosure

Product Environmental Profile

Total	lifecycle Carbon footprint 3

Packaging made with recycled cardboard No

Packaging without single use plastic Yes

SCIP Number Ed70c451-eb98-4beb-bfa0-d83cf974f40d

REACh Regulation Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive Compliant By Exemption

Halogen-free status Halogen free plastic parts product

PVC free Yes

Silicone-free No

End of life manual availability

End Of Life Information

Take-back No

WEEE Label The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty

Warranty (in months) 18

Product Life Status	Commercialised
