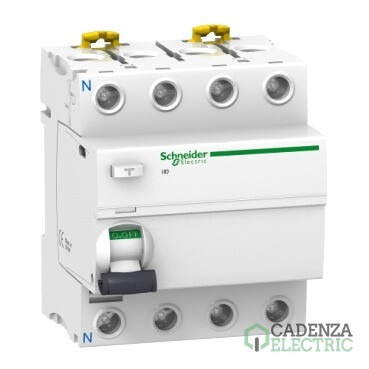

Interruptor diferencial iID 4P 80A 300mA A ref. A9R24480 Schneider Electric

A9R24480 | 4P | 80 A | 300 mA | Acti9 iID | Interruptor diferencial | IP20 | Schneider Electric | Precio en oferta
Ver más

Desde IVA incluido

IVA no incluido

Intensidad

Cantidad

()

Código de referencia: SCHA9R24480
Código de producto:
Código de proveedor:
Más en 4P
Más en 300mA
Marca: Schneider Electric
Sensibilidad de disparo: 300 mA
Gama: Acti9
Tipo de producto o componente: Interruptor diferencial
Corriente nominal: 80 A
Clase de protección diferencial: A
Ajuste de la temporización diferencial: Instantáneo
Numero de polos: 4P
Precio de coste:
Unidades por pack:

Descripción
Propiedades

Especificaciones de Interruptor diferencial iID 4P 80A 300mA A – referencia A9R24480 de Schneider Electric.

Main

Range	Acti9
Product name	Acti9 iID
product or component type	Residual current circuit breaker (RCCB)
Device Short Name	iID
Poles description	4P
Neutral position	Left
[In] rated current	80 A
Network type	AC
Earth-leakage sensitivity	300 mA
earth-leakage protection time delay	Instantaneous
earth-leakage protection class	Type A

Complementary

Device location in system Outgoer

Network frequency	50/60 Hz
[Ue] rated operational voltage	400...415 V AC 50/60 Hz

Residual current tripping technology Voltage independent

rated breaking and making capacity	Idm 1500 A

Im 1500 A

rated conditional short-circuit current	10 kA
[Ui] rated insulation voltage	500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	6 kV
Contact position indicator	Yes
Control Type	Toggle
mounting mode	Clip-on
Mounting support	35 mm DIN rail
9 mm pitches	8
Height	85 mm
Width	72 mm
Depth	69 mm
Embedding depth	44 mm
Product Weight	370 g
Colour	White (RAL 9003)
Mechanical Durability	20000 Cycles
Electrical Durability	10000 Cycles
Locking options description	Padlocking device

Aug 5, 2026

Connections - terminals	Single terminal top or bottom 1…35 mm² rigid

Single terminal top or bottom 1…25 mm² flexible

Single terminal top or bottom 1…25 mm² flexible with ferrule

Wire stripping length	14 mm for top or bottom connection
tightening torque	3.5 N·m top or bottom

Environment

Standards	EN/IEC 61008-1

EN/IEC 61008-2-1

ip degree of protection	IP20 conforming to IEC 60529

IP40 (modular enclosure) conforming to IEC 60529

Pollution degree	3
Electromagnetic compatibility	8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
Ambient Air Temperature for Operation	-25…60 °C
Ambient air temperature for storage	-40…85 °C

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Height 8.500 cm

Package 1 Width 7.700 cm

Package 1 Length 9.600 cm

Package 1 Weight 364.000 g

Unit Type of Package 2 S03

Number of Units in Package 2 27

Package 2 Height 30.000 cm

Package 2 Width 30.000 cm

Package 2 Length 40.000 cm

Package 2 Weight 10.284 kg

Offer Sustainability

Recyclability potential, in % 53

Total	lifecycle Carbon footprint 94 kg CO2 eq.

Carbon footprint of the manufacturing phase [A1 to A3] 3.0032785150931876

Carbon footprint of the manufacturing phase [A1 to A3] 3 kg CO2 eq.

Carbon footprint of the distribution phase [A4] 0.0763719887404122

Carbon footprint of the distribution phase [A4] 0.1 kg CO2 eq.

Carbon footprint of the installation phase [A5] 0.03387696635679143

Carbon footprint of the installation phase [A5] 0 kg CO2 eq.

Carbon footprint of the use phase [B2, B3, B4, B6] 90.47892478679567

Carbon footprint of the use phase [B2, B3, B4, B6] 90 kg CO2 eq.

Mercury free Yes

Sustainable packaging	Yes

Carbon footprint of the end-of-life phase [C1 to C4] 0.8822804914294896

Carbon footprint of the end-of-life phase [C1 to C4] 0.9 kg CO2 eq.

Environmental Disclosure

Product Environmental Profile

Total	lifecycle Carbon footprint 94

Packaging made with recycled cardboard Yes

Packaging without single use plastic Yes

SCIP Number B078722f-7853-4e1e-a05b-29638f57b0ab

REACh Regulation Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive Compliant By Exemption

Halogen-free status Product contains halogen above thresholds

End of life manual availability No need of specific recycling operations

Take-back No

WEEE Label The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty

Warranty (in months) 18

Product Life Status	Commercialised

Disponibilidad y ofertas en Cadenza Electric

En Cadenza Electric tenemos más de 2.000 referencias de Schneider Electric en almacén logístico disponibles para envío inmediato, y más de 10.000 referencias de Schneider Electric en almacén central que podemos servir entre 1 y 4 días. Puedes comprar todas estas referencias de Schneider Electric al mejor precio de internet en Cadenza Electric.

Encuentra la disponibilidad de este producto, Interruptor diferencial iID 4P 80A 300mA A ref. A9R24480 Schneider Electric, en Cadenza Electric justo encima del botón naranja Comprar.

Para solicitar una oferta de gran volumen, o consultar si existe la posibilidad de acortar el plazo de entrega, rogamos contacto preferente vía email a info@cadenzaelectric.com o a través del siguiente enlace: contacto.

Sensibilidad de disparo	300 mA
Gama	Acti9
Tipo de producto o componente	Interruptor diferencial
Corriente nominal	80 A
Clase de protección diferencial	A
Ajuste de la temporización diferencial	Instantáneo
Numero de polos	4P
