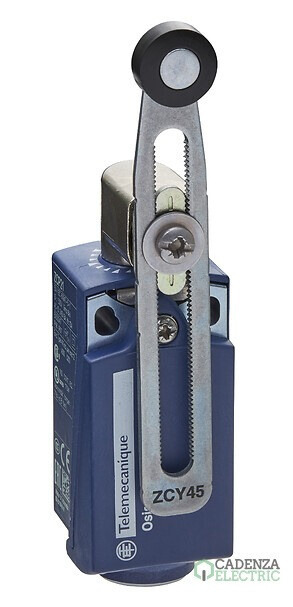

Interruptor de posición Telemecanique Sensors — XCKP2145P16 ref. XCKP2145P16 Schneider Electric

Desde IVA incluido

IVA no incluido

Cantidad

()

Código de referencia: nw20170131
Código de producto:
Código de proveedor:
Más en 2P
Más en Telemecanique OsiSense XC
Marca: Schneider Electric
Gama: Telemecanique XC Standard
Tipo de producto o componente: Interruptor de posición
Numero de polos: 2P
Tipo de contactos: 1 NA + 1 NC
Material de la cabeza: Zamak
Precio de coste:
Unidades por pack:

Descripción
Propiedades

Especificaciones de Interruptor de posición Telemecanique Sensors — XCKP2145P16 – referencia XCKP2145P16 de Schneider Electric.

Main

range of product	Telemecanique Limit switches XC Standard

Series name Standard format

product or component type	Limit switch
Device Short Name	XCKP

Sensor design Compact

body type	Fixed

Head type Rotary head

Material	Plastic

Body material Plastic

head material	Zamak

Fixing mode By the body

Movement of operating head Rotary

Type of operator Spring return roller lever thermoplastic variable length

Type of approach Lateral approach, 2 directions

Number of Poles	2
contacts type and composition	1 NC + 1 NO

Contact operation Snap action

Complementary

Switch actuation By 30° cam

Electrical connection Screw-clamp terminals, clamping capacity	1 x 0.34...2 x 1.5 mm²
Cable entry 1 entry tapped for M16 x 1.5 cable gland, cable outer diameter	4…8 mm

Contacts insulation form Zb

Positive opening With

Positive opening minimum torque 0.25 N·m

Minimum torque for tripping 0.1 N·m

Maximum actuation speed 1.5 M/S

Repeat accuracy 0.1 mm on the tripping points with 1 million operating cycles

Contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A

Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

[Ui] rated insulation voltage	300 V conforming to UL 508

500 V (pollution degree 3) conforming to IEC 60947-1

300 V conforming to CSA C22.2 No 14

Maximum resistance across terminals	25 MOhm conforming to IEC 60255-7 category 3

Aug 5, 2026

[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60664

6 kV conforming to IEC 60947-1

short-circuit protection	10 A cartridge fuse, type gG
Electrical durability 5000000 Cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor	0.5 conforming to IEC 60947-5-1 appendix C
5000000 Cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor	0.5 conforming to IEC 60947-5-1 appendix C
5000000 Cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor	0.5 conforming to IEC 60947-5-1 appendix C
Mechanical Durability	10000000 Cycles
Width	31 mm
Height	65 mm
Depth	30 mm
Product Weight	0.145 kg

Terminals description ISO n°1 (21-22)NC

(13-14)NO

Environment

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

ip degree of protection	IP66 conforming to IEC 60529

IP67 conforming to IEC 60529

ik degree of protection	IK04 conforming to IEC 62262
electrical shock protection class	Class II conforming to IEC 61140

Class II conforming to NF C 20-030

Ambient Air Temperature for Operation	-25…70 °C
Ambient air temperature for storage	-40…70 °C
Protective Treatment	TC
Product Certifications	CSA \| UL \| CCC
Standards	UL 508

IEC 60947-5-1

IEC 60204-1

CSA C22.2 No 14

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Height 3.200 cm

Package 1 Width 4.600 cm

Package 1 Length 12.400 cm

Package 1 Weight 126.000 g

Unit Type of Package 2 S02

Number of Units in Package 2 55

Package 2 Height 15 cm

Package 2 Width 30 cm

Package 2 Length 40 cm

Package 2 Weight 7.368 kg

Unit Type of Package 3 P06

Number of Units in Package 3 880

Package 3 Height 75.000 cm

Package 3 Width 60.000 cm

Package 3 Length 80.000 cm

Package 3 Weight 126.660 kg

Offer Sustainability

Mercury free Yes

Sustainable packaging	No

Packaging made with recycled cardboard No

Packaging without single use plastic No

SCIP Number A9409827-2f23-4c4e-8285-e88ff4bed3d6

EU RoHS Directive Compliant By Exemption

California proposition 65 WARNING	This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Take-back No

Contractual warranty

Warranty (in months) 18

Product Life Status	End of commerc. - Block
