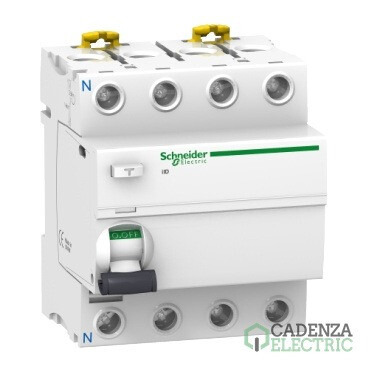

Interruptor diferencial iID 4P 100A 30mA AC ref. A9R11491 Schneider Electric

A9R11491 | 4P | 100 A | 30 mA | Acti9 iID | Interruptor diferencial | IP20 | Schneider Electric | Precio en oferta
Ver más

Desde IVA incluido

IVA no incluido

Intensidad

Cantidad

()

Código de referencia: SCHA9R11491
Código de producto:
Código de proveedor:
Más en 4P
Más en 30mA
Marca: Schneider Electric
Sensibilidad de disparo: 30 mA
Gama: Acti9
Tipo de producto o componente: Interruptor diferencial
Corriente nominal: 100 A
Clase de protección diferencial: AC
Ajuste de la temporización diferencial: Instantáneo
Numero de polos: 4P
Precio de coste:
Unidades por pack:

Descripción
Propiedades

Especificaciones de Interruptor diferencial iID 4P 100A 30mA AC – referencia A9R11491 de Schneider Electric.

Main

Range	Acti9
Product name	Acti9 iID
product or component type	Residual current circuit breaker (RCCB)
Device Short Name	iID
Poles description	4P
Neutral position	Left
[In] rated current	100 A
Network type	AC
Earth-leakage sensitivity	30 mA
earth-leakage protection time delay	Instantaneous
earth-leakage protection class	Type AC

Complementary

Device location in system Outgoer

Network frequency	50/60 Hz
[Ue] rated operational voltage	400...415 V AC 50/60 Hz

Residual current tripping technology Voltage independent

rated breaking and making capacity	Idm 1500 A

Im 1500 A

rated conditional short-circuit current	10 kA
[Ui] rated insulation voltage	500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	6 kV
Contact position indicator	Yes
Control Type	Toggle
mounting mode	Clip-on
Mounting support	35 mm DIN rail
9 mm pitches	8
Height	85 mm
Width	72 mm
Depth	69 mm
Embedding depth	44 mm
Product Weight	370 g
Colour	White (RAL 9003)
Mechanical Durability	20000 Cycles
Electrical Durability	10000 Cycles
Locking options description	Padlocking device

Aug 5, 2026

Connections - terminals	Single terminal top or bottom 1…35 mm² rigid

Single terminal top or bottom 1…25 mm² flexible

Single terminal top or bottom 1…25 mm² flexible with ferrule

Wire stripping length	14 mm for top or bottom connection
tightening torque	3.5 N·m top or bottom

Environment

Standards	EN/IEC 61008-1

EN/IEC 61008-2-1

Product Certifications	ISI \| SNI
ip degree of protection	IP20 conforming to IEC 60529

IP40 (modular enclosure) conforming to IEC 60529

Pollution degree	3
Electromagnetic compatibility	8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
Ambient Air Temperature for Operation	-5…60 °C
Ambient air temperature for storage	-40…85 °C

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Height 8.200 cm

Package 1 Width 7.500 cm

Package 1 Length 10.000 cm

Package 1 Weight 410.000 g

Unit Type of Package 2 S03

Number of Units in Package 2 27

Package 2 Height 30.000 cm

Package 2 Width 30.000 cm

Package 2 Length 40.000 cm

Package 2 Weight 11.500 kg

Offer Sustainability

Recyclability potential, in % 53

Total	lifecycle Carbon footprint 118 kg CO2 eq.

Carbon footprint of the manufacturing phase [A1 to A3] 3.349439585014024

Carbon footprint of the manufacturing phase [A1 to A3] 3 kg CO2 eq.

Carbon footprint of the distribution phase [A4] 0.08517470523889949

Carbon footprint of the distribution phase [A4] 0.1 kg CO2 eq.

Carbon footprint of the installation phase [A5] 0.03778166146275807

Carbon footprint of the installation phase [A5] 0 kg CO2 eq.

Carbon footprint of the use phase [B2, B3, B4, B6] 113.0986559834946

Carbon footprint of the use phase [B2, B3, B4, B6] 113 kg CO2 eq.

Mercury free Yes

Sustainable packaging	Yes

Carbon footprint of the end-of-life phase [C1 to C4] 0.9839730774978974

Carbon footprint of the end-of-life phase [C1 to C4] 1 kg CO2 eq.

Environmental Disclosure

Product Environmental Profile

Total	lifecycle Carbon footprint 118

Packaging made with recycled cardboard Yes

Packaging without single use plastic Yes

SCIP Number 42d9fa7e-1604-4ebd-8742-78b281843dbb

REACh Regulation Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive Compliant By Exemption

POP Directive No POPs

Halogen-free status Product contains halogen above thresholds

Silicone-free No

End of life manual availability No need of specific recycling operations

Take-back No

WEEE Label The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty

Warranty (in months) 18

Product Life Status	Commercialised

Disponibilidad y ofertas en Cadenza Electric

En Cadenza Electric tenemos más de 2.000 referencias de Schneider Electric en almacén logístico disponibles para envío inmediato, y más de 10.000 referencias de Schneider Electric en almacén central que podemos servir entre 1 y 4 días. Puedes comprar todas estas referencias de Schneider Electric al mejor precio de internet en Cadenza Electric.

Encuentra la disponibilidad de este producto, Interruptor diferencial iID 4P 100A 30mA AC ref. A9R11491 Schneider Electric, en Cadenza Electric justo encima del botón naranja Comprar.

Para solicitar una oferta de gran volumen, o consultar si existe la posibilidad de acortar el plazo de entrega, rogamos contacto preferente vía email a info@cadenzaelectric.com o a través del siguiente enlace: contacto.

Sensibilidad de disparo	30 mA
Gama	Acti9
Tipo de producto o componente	Interruptor diferencial
Corriente nominal	100 A
Clase de protección diferencial	AC
Ajuste de la temporización diferencial	Instantáneo
Numero de polos	4P
