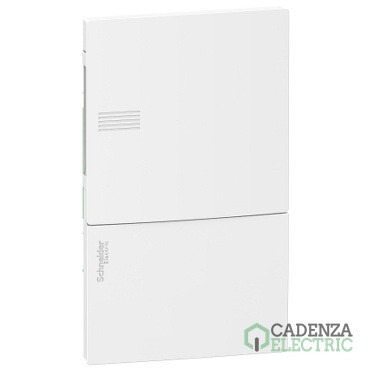

Cofret modular Mini Pragma — MIP22104 ref. MIP22104 Schneider Electric

MIP22104 | 50 A | IP40 | Resi9 MP | Enclosure | Schneider Electric | Precio en oferta
Ver más

Desde IVA incluido

IVA no incluido

Intensidad

Cantidad

()

Código de referencia: SCHMIP22104
Código de producto:
Código de proveedor:
Más en Mini Pragma (MIP)
Marca: Schneider Electric
Gama: Resi9
Tipo de caratula: Plain
Filas: 1
Modulos por fila (18mm): 4
Tipo de producto o componente: Armario
Precio de coste:
Unidades por pack:

Descripción
Propiedades

Especificaciones de Cofret modular Mini Pragma — MIP22104 – referencia MIP22104 de Schneider Electric.

Main

Range	Resi9
Product name	Resi9 MP
product or component type	Enclosure
Enclosure type	Modular enclosure
number of 18 mm modules per row	4
number of horizontal rows	1
type of front cover	Plain
Width Wall	126 mm
Outside	150 mm
Height Wall	228 mm
Outside	252 mm
Depth Outside	18 mm
Wall	80 mm
Total	98 mm

Complementary

Enclosure	mounting Flush
9 mm pitches	8
Total	number of 18 mm modules 4
[In] rated current	50 A

Type of rail 35 mm asymmetrical rail

Mounting plate description Without mounting plate

Cable entry Pre-cutted holes

Terminal block function Earth / neutral

Number of terminal blocks 1 earth (screwed) with 4 outgoers

1 neutral (screwed) with 4 outgoers

Distribution block outgoers 1 x 16 mm² for earth

1 x 16 mm² for neutral

1 x 6 mm² for earth

1 x 6 mm² for neutral

2 x 10 mm² for earth

2 x 10 mm² for neutral

Enclosure material Back part	technoplastic
Door	technoplastic
Front face	technoplastic

Internal depth 76 mm

Colour Door	white (RAL 9003)
Front face	white (RAL 9003)

Market segment Residential

Small commercial

Aug 5, 2026

Environment

Standards	IEC 60670-1

IEC 60670-24

Quality labels IMQ

Fire resistance Door	650 °C
Back part	650 °C
Front face	650 °C
ip degree of protection	IP40
ik degree of protection	IK07
Ambient Air Temperature for Operation	-25…60 °C

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Height 9.500 cm

Package 1 Width 15.000 cm

Package 1 Length 25.000 cm

Package 1 Weight 496.000 g

Unit Type of Package 2 BB1

Number of Units in Package 2 15

Package 2 Height 53.000 cm

Package 2 Width 31.000 cm

Package 2 Length 41.000 cm

Package 2 Weight 8.076 kg

Unit Type of Package 3 P12

Number of Units in Package 3 240

Package 3 Height 118.500 cm

Package 3 Width 80.000 cm

Package 3 Length 120.000 cm

Package 3 Weight 141.208 kg

Offer Sustainability

Recyclability potential, in % 15

Total	lifecycle Carbon footprint 14 kg CO2 eq.

Carbon footprint of the manufacturing phase [A1 to A3] 12.941305900887224

Carbon footprint of the manufacturing phase [A1 to A3] 13 kg CO2 eq.

Carbon footprint of the distribution phase [A4] 0.041205661523429866

Carbon footprint of the distribution phase [A4] 0 kg CO2 eq.

Carbon footprint of the installation phase [A5] 0.005999876610494288

Carbon footprint of the installation phase [A5] 0 kg CO2 eq.

Carbon footprint of the use phase [B2, B3, B4, B6] 0

Carbon footprint of the use phase [B2, B3, B4, B6] 0 kg CO2 eq.

Mercury free Yes

Sustainable packaging	No

Carbon footprint of the end-of-life phase [C1 to C4] 1.319064977564255

Carbon footprint of the end-of-life phase [C1 to C4] 1 kg CO2 eq.

Environmental Disclosure

Product Environmental Profile

Total	lifecycle Carbon footprint 14

Average percentage of recycled plastic content 59 %

Packaging made with recycled cardboard Yes

Packaging without single use plastic No

SCIP Number 5305d5d6-3783-4b3d-abd0-61fa4a6023d7

REACh Regulation Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive Compliant By Exemption

Halogen-free status Halogen free plastic parts product

PVC free Yes

End of life manual availability No need of specific recycling operations

Take-back No

Contractual warranty

Warranty (in months) 18

Product Life Status	Commercialised
